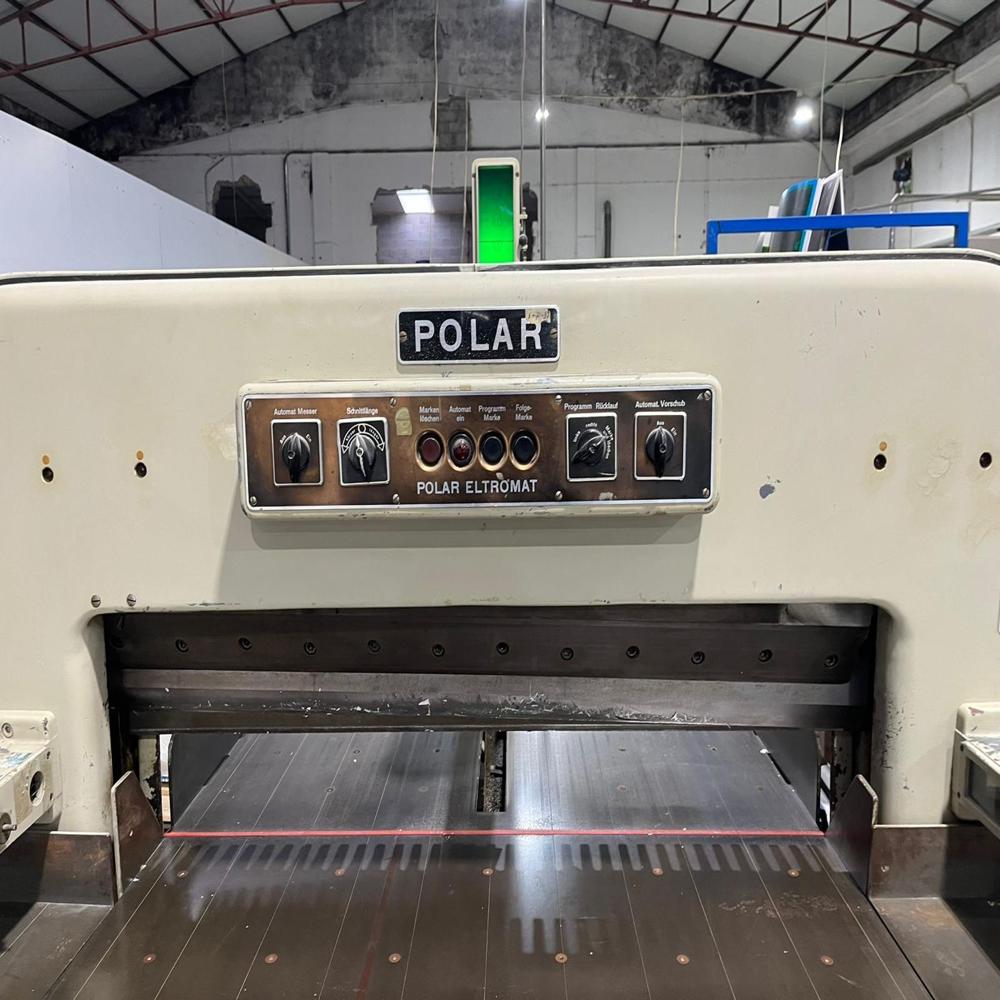

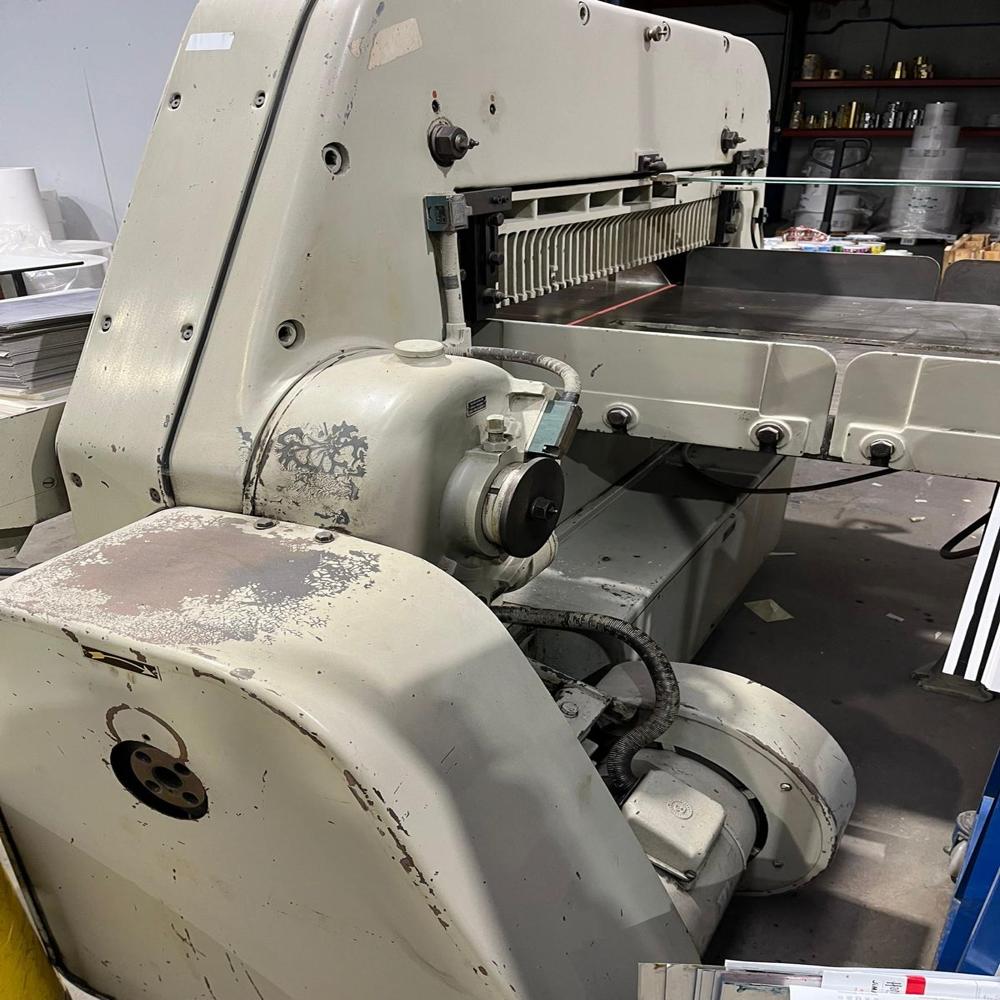

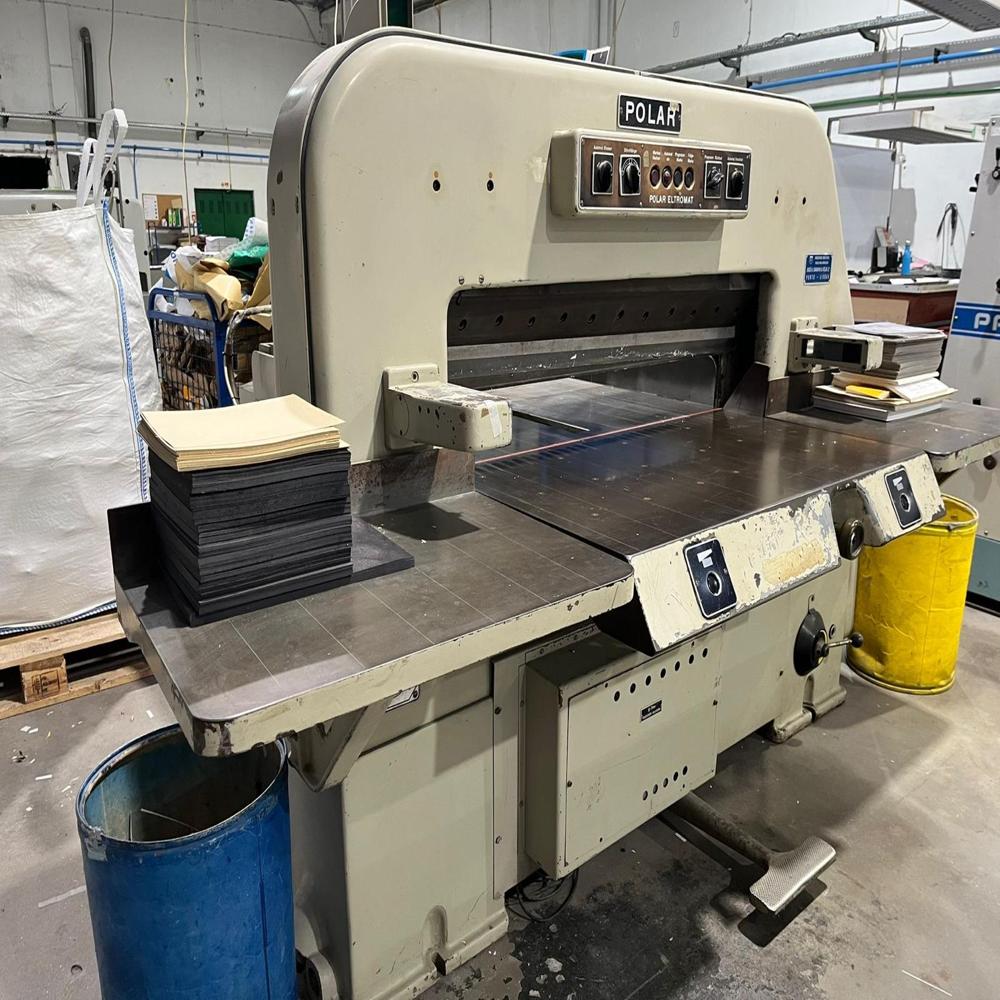

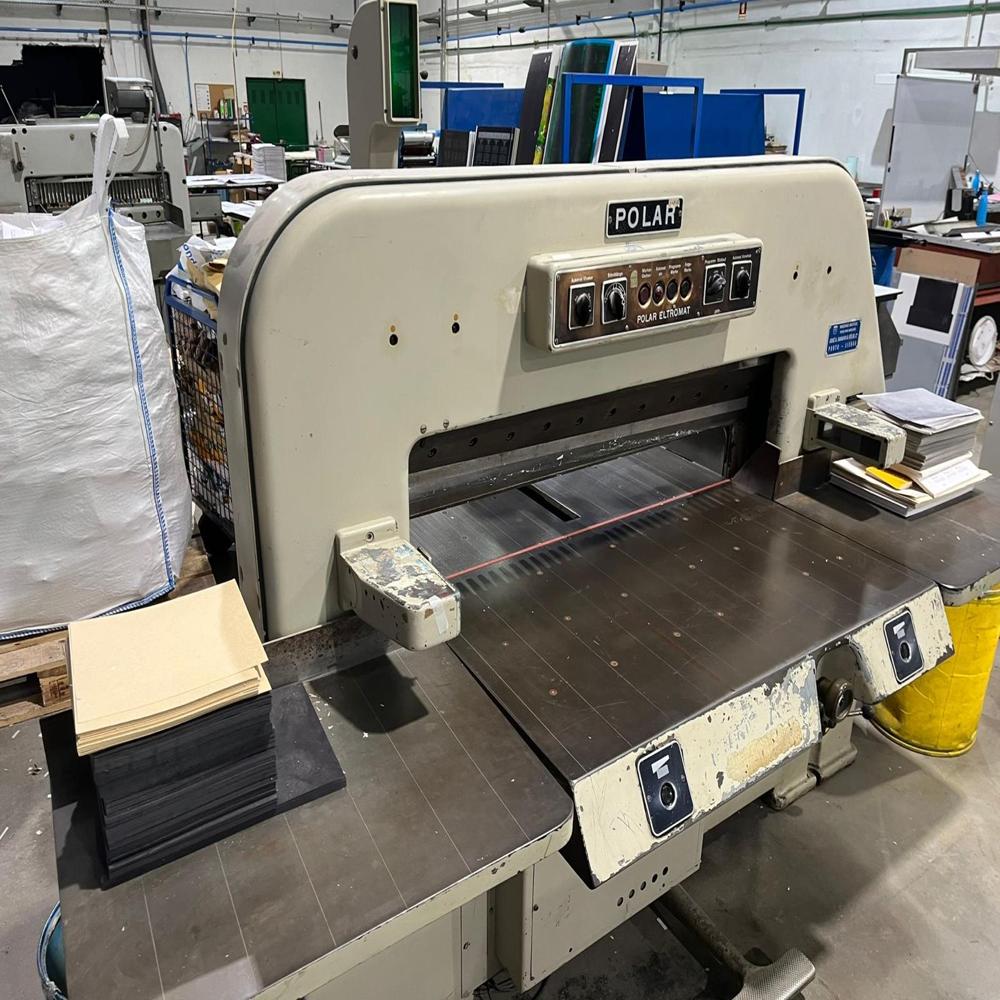

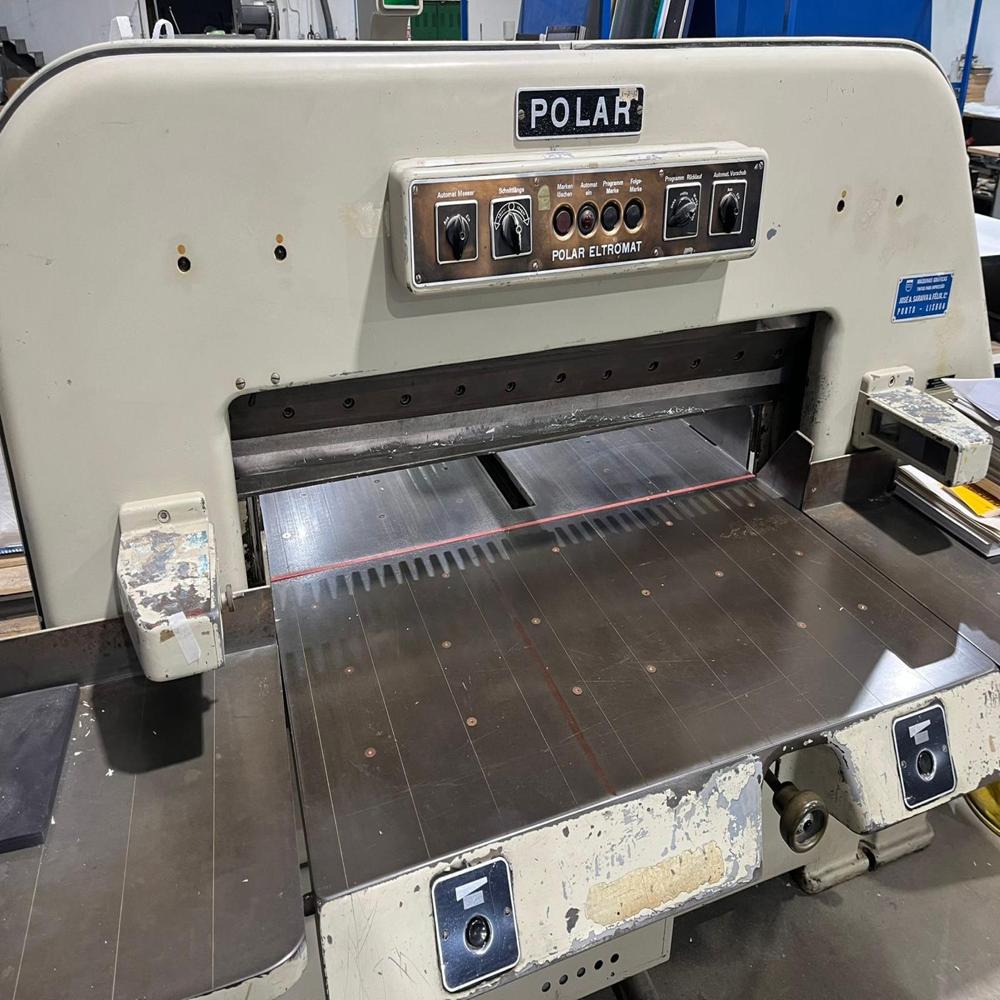

POLAR 107 EL PAPER CUTTING MACHINE

Name: POLAR 107 EL PAPER CUTTING MACHINE
Brand: Surana Exim Pvt. Ltd.
Price: 7500.00 INR
Availability: InStock

Price 7500.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

POLAR 107 EL PAPER CUTTING MACHINE Specification

Drive Motor
Hydraulic motor

Product Type
Industrial Paper Cutter

General Use
High-volume paper & board cutting

Material
Steel main frame, industrial-grade surfaces

Type
Hydraulic Paper Cutting Machine

Capacity
Up to 1000 sheets depending on stock

Weight (kg)
Approx. 2600 kg

Computerized
No

Automatic
Semi-automatic (Manual feed, automatic cut)

Cutting Speed
Variable, up to 40 cuts/min

Cutting Thickness
Up to 165 mm (6.5 inches)

Cutting Function
Precision hydraulic cutting

Cooling System
Air-cooled, no special cooling unit

Drive Type
Hydraulic

Voltage
380 V (Three Phase), 50/60 Hz

Dimension (L*W*H)
Approx. 2500 x 2500 x 1600 mm

Feature
Solid steel construction, manual & semi-automatic operation, safety light barrier

Color
Light Grey/Beige

Motor
Main Drive: 5.5 kW (7.5 HP)

Mechanical Precision
0.05 mm

Software Detail
N/A (Manual Controlled, non-computerized)

Cutting Method
Guillotine, hydraulic operation

Control System
Manual/Analog panel with safety light barrier

Cutting Material
Paper, board, thin plastics

Cutting Area
1070 mm (42 inches)

Lubrication System
Centralized manual

Cutting Line Indicator
Red LED light line

Side Table Option
Yes, for large format sheets

Safety Features
Infrared safety light barrier, two-hand operation

Power Consumption
7.5-8 kW max running load

Table Surface
Chromed, air table system optional

Model
POLAR 107 EL

Display Type
Analog mechanical indicator for back gauge

Machine Origin
Germany (Polar Mohr)

Back Gauge Movement
Manual/Electro-mechanical

Year of Introduction
1970s-1980s (varies by serial)

Noise Level
Approx. 78 dB(A) at full load

Blade Change Tool
Included

POLAR 107 EL PAPER CUTTING MACHINE About

Access the POLAR 107 EL PAPER CUTTING MACHINE to grab classic German engineering and valuable performance. With its solid steel construction and precision hydraulic cutting, this terrific machine is ideal for high-volume paper, board, and thin plastic cutting. The analog mechanical indicator and red LED cutting line indicator allow for reliable accuracy with every cut. Users benefit from significant savings on large-format jobs, while safety is ensured through an infrared light barrier and two-hand operation. Designed for versatility, it offers manual and semi-automatic operation for maximum productivity.

Valuable Versatility for Diverse Applications

The POLAR 107 EL PAPER CUTTING MACHINE is expertly crafted for a range of applications, including print shops, packaging industries, and corporate print rooms. Its durable build and large cutting area (1070 mm) make it invaluable wherever large-format sheets are processed. This classic equipment is well-suited for both manual and semi-automatic use, providing reliable results whether on factory floors, bindery operations, or paperboard converting sites.

Express Shipping & Export Advantages

Reduce overall expenditure with competitive FOB port options and quick dispatch services. The POLAR 107 EL is regularly supplied to main export markets across Europe, Asia, and the Middle East, ensuring wide-reaching availability. Thanks to express shipping options, clients receive rapid deliveries, helping you efficiently plan installations and operations while minimizing downtime. Standard delivery times are tailored to meet import regulations and your scheduling needs, wherever your facility is located.

FAQ's of POLAR 107 EL PAPER CUTTING MACHINE:

Q: How does the POLAR 107 EL ensure operator safety during use?

A: The POLAR 107 EL is equipped with an infrared safety light barrier and requires two-hand operation to initiate the cutting stroke, minimizing the risk of accidental injuries and ensuring operator protection throughout the process.

Q: What materials and sheet sizes can I cut with this machine?

A: This classic cutter is engineered to handle paper, cardboard, thin plastics, and more. It supports large-format materials up to 1070 mm (42 inches) wide and can process stacks up to 165 mm thick or about 1000 sheets, depending on stock.

Q: Where is the POLAR 107 EL Paper Cutting Machine best utilized?

A: The POLAR 107 EL is ideal for high-volume paper cutting in print shops, packaging plants, corporate print rooms, and binderies, as well as factories requiring precision processing of paperboard and similar flat materials.

Q: What benefits does the analog mechanical display offer over digital alternatives?

A: The analog mechanical display provides straightforward, reliable back gauge positioning with minimal maintenance requirements and no risk of electronic malfunction, enabling precise cuts even in less technologically advanced facilities.

Q: How quick is the delivery process and what export markets are served?

A: With dedicated express shipping and quick dispatch services, the POLAR 107 EL can be delivered rapidly to key export markets in Europe, Asia, and the Middle East, reducing downtime and supporting seamless installation at your site.
