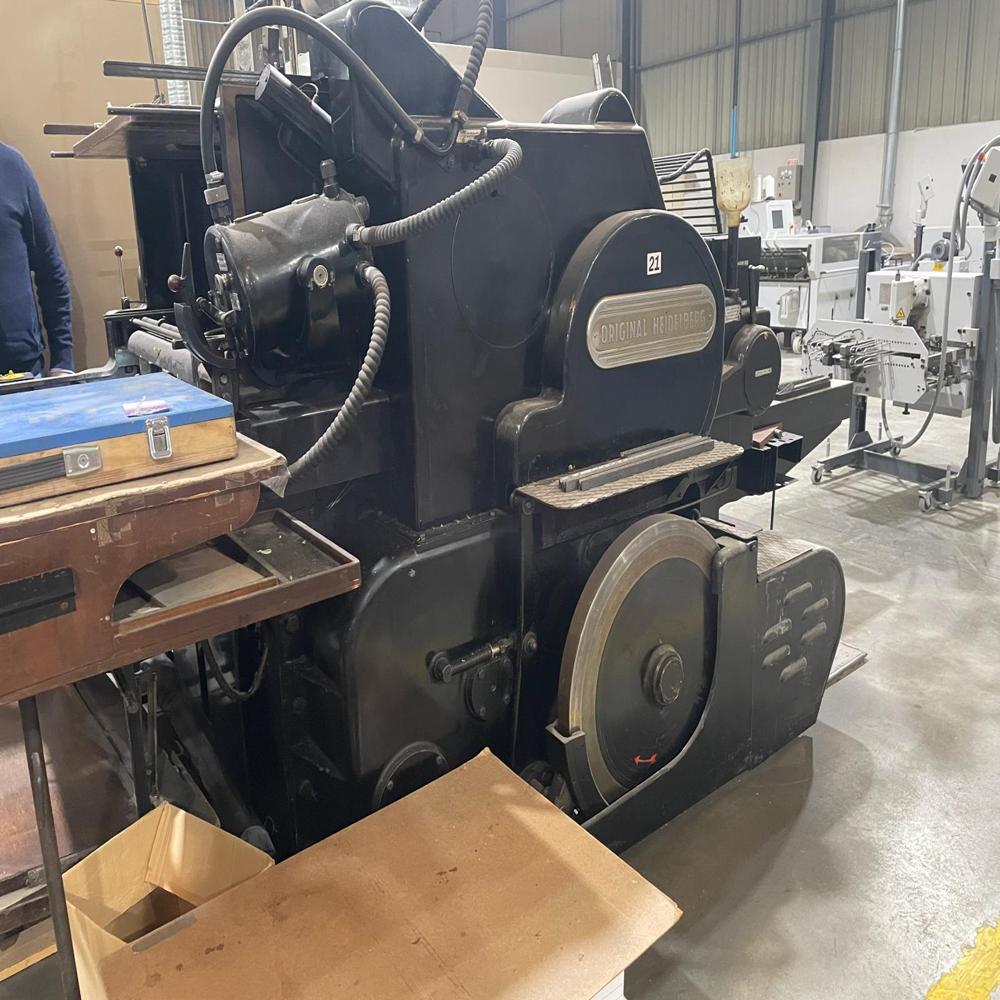

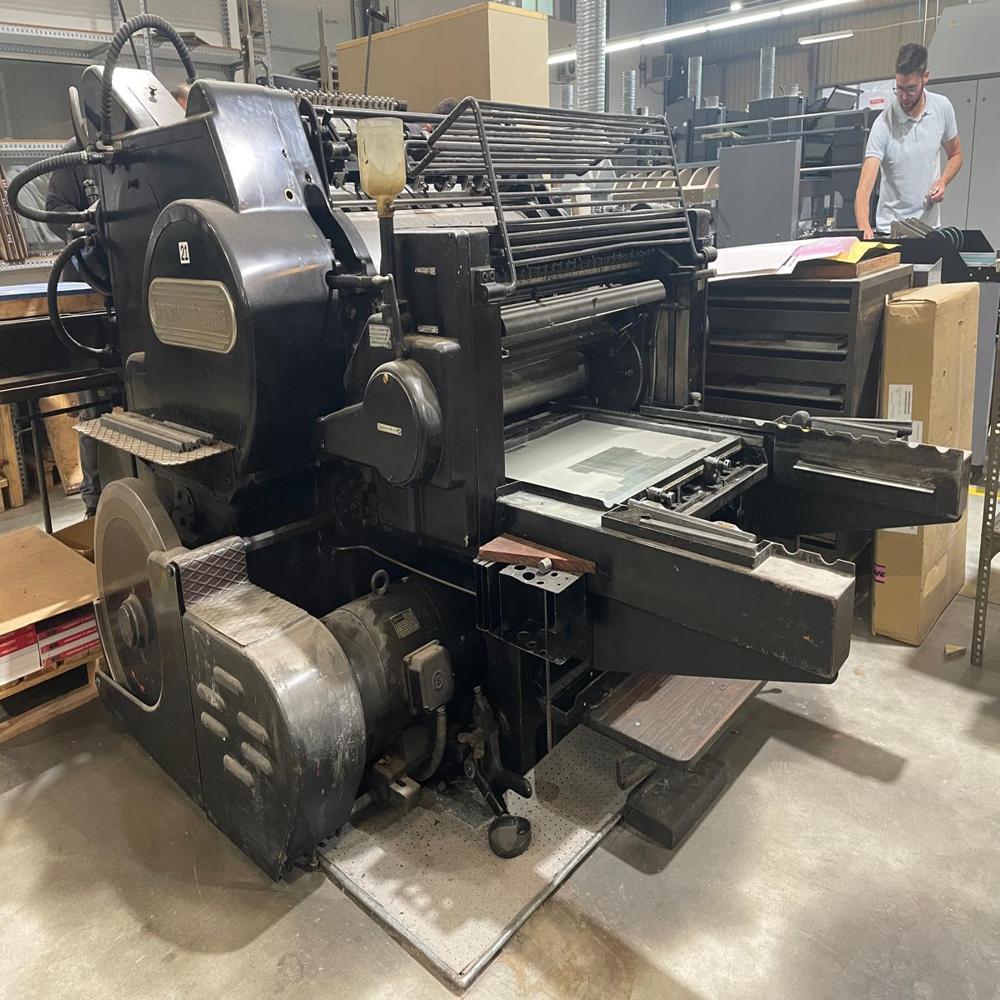

HEIDELBERG CYLINDER SBG

Name: HEIDELBERG CYLINDER SBG
Brand: Surana Exim Pvt. Ltd.
Price: 1750.0 INR
Availability: InStock

Price 1750.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

HEIDELBERG CYLINDER SBG Specification

Drive Motor
Integrated industrial AC motor

Product Type
Industrial Die Cutter

General Use
Paper, card, board die cutting and creasing in print finishing

Material
Steel body, precision mechanics

Type
Cylinder Die Cutting Machine

Capacity
High volume, continuous feed

Weight (kg)
Approx 3500-4000 kg

Computerized
No

Automatic
Semi-automatic

Cutting Speed
3000 sheets/hour

Cutting Thickness
Up to 4 mm, depending on material

Cutting Function
Die Cutting, Creasing, Embossing

Cooling System
Not required (air cooled/mechanical)

Drive Type
Mechanical

Voltage
380V~415V, 3 Phase

Dimension (L*W*H)
2580 mm x 1960 mm x 1650 mm

Feature
High precision, high volume output, vintage Heidelberg engineering

Color
Black

Motor
3-4 kW main motor

Mechanical Precision
0.1 mm

Software Detail
Not computerized, manual settings

Cutting Method
Flatbed die cutting with mechanical cylinder

Control System
Manual lever, mechanical cam system

Cutting Area
560 x 820 mm

Cutting Material
Paper, card, carton board

Operator Requirement
1 skilled operator required

Machine Condition
Varies (used/retrofit possible)

Ejection System
Manual/assisted sheet ejection

Operating Noise Level
75-85 dB

Cylinder Type
Central impression steel cylinder

Suitable Processes
Die cutting, embossing, perforation, creasing

Safety Features
Mechanical safety locking, emergency stop

Maximum Paper Weight
Up to 2000 gsm (varies by substrate)

Sheet Size Range
Min 220 x 280 mm to Max 570 x 820 mm

Gripper Margin
10 mm

Feed Type
Automatic board/paper feeder

Power Consumption
Approx. 5-7 kW/hr

Feeder System
Automated sheet feeder

Year of Manufacture
Variable (typically 1960s-1980s vintage)

Lubrication System
Centralized manual lubrication

HEIDELBERG CYLINDER SBG About

Experience the unbeatable engineering of the HEIDELBERG CYLINDER SBG with Feeder System-a majestic addition to any print finishing operation. Fresh units are in limited supply and ending soon, so don't miss your chance to order a classic machine crafted for sublime die cutting, embossing, and creasing. With an automated sheet feeder, high precision mechanics, and a robust steel body, this vintage marvel offers continuous high-volume output while ensuring safety and reliability. Perfect for distributors, exporters, and manufacturers requiring a semi-automatic, manual-setting powerhouse.

Unmatched Features and Versatile Application

The HEIDELBERG CYLINDER SBG boasts automated sheet feeding, precise mechanical operation, and a flatbed cutting method, handling paper, card, and carton board up to 2000 gsm. With a majestic cutting area of 560 x 820 mm, it excels at die cutting, creasing, and embossing. Ideal for print finishing, packaging, and converting sites, it masters a wide surface of applications-delivering reliability and quality on paper, card stock, and board substrates.

Payment, Certification, and Sample Policy Insights

Our HEIDELBERG CYLINDER SBG units are dispatched promptly upon payment confirmation, catering to both domestic and export markets. Exchange options may be discussed, and machines can be supplied with requested certifications where available. Sample assessments and demonstration policies are flexible; inquire for tailored terms to support your business requirements.

FAQ's of HEIDELBERG CYLINDER SBG:

Q: How does the automation feature of the sheet feeder enhance productivity?

A: The automated sheet feeder enables fast, uninterrupted feeding of materials, supporting high-volume operations while minimizing manual intervention and reducing errors.

Q: What are the suitable sites of application for the HEIDELBERG CYLINDER SBG?

A: This machine is ideal for use in print finishing workshops, packaging factories, and commercial printing sites utilizing paper, card, and board substrates.

Q: When is the best time to order the HEIDELBERG CYLINDER SBG?

A: Availability is limited and units are selling quickly, so placing your order soon guarantees access to this classic, high-precision machine before current stock ends.

Q: What safety features does the machine include for operator assurance?

A: Operator safety is ensured via robust mechanical safety locking, an emergency stop system, and centralized manual lubrication for consistent operation.

Q: What is the process for exporting or exchanging this machine?

A: Machines are prepared for dispatch to domestic and international buyers, with exchange and export policies clarified upon inquiry, ensuring smooth transactions and logistics.

Q: What are the main benefits of using this Heidelberg Cylinder for finishing tasks?

A: Users benefit from sublime cut quality, unbeatable mechanical precision of 0.1 mm, and reliable high-volume output driven by celebrated vintage engineering.
